YSMP-800 1+8 Stone Flat Edge Polishing Machine
Buy Yongtao stone flat edge polishing machine,can process stone,marble flat edge polishing,1 head rough grinding,8 head polishing,choose Yongtao Machinery
Product introduction

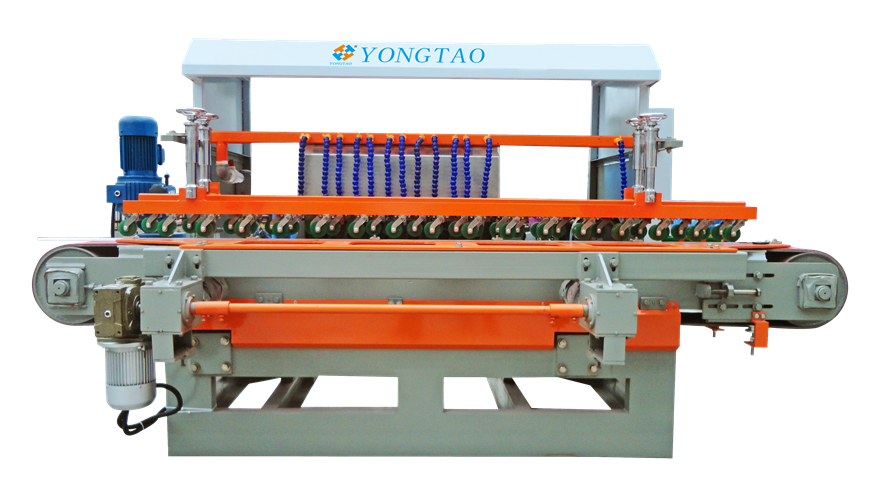

Description of YSMP-800 1+8 Stone Flat Edge Polishing Machine
YSMP-800 1+8 Stone Flat Edge Polishing Machine is the latest marble polish machine by Yongtao machinery. The machine has one diamond grinding wheel in the front, which can make squaring to the slab edge if it is over size, and has 8 polishing head at the behind, which can polish the flat edge. The processing materials: stone, marble, granite, artificial stone and other materials of edge grinding process, before the edge grinding, please use infrared bridge stone cutting machine, cutting the slab into a fixed specifications, and then use this polishing machine to process flat edge polishing. The squaring wheel use the diamond wheel, and the polishing wheel use grinding slice or sponge slice. Using these wheels, the polishing effect of flat edge is perfect. The polishing head drive by pneumatic device. So we suggest that prepare a air compressor if the factory didn't have any compressor. The machines have the advantage of reasonable designing, simple operation, easy to maintain, high highly speed of output, are popular by lots of stone processing factory.
Marble Flat Edge Polishing Machine:
Technical Parameter of YSMP-800 1+8 Stone Flat Edge Polishing Machine
Machine specifications
| Number of squaring head | 1pc |
|---|---|
| Squaring motor | 3kw |
| Numbers of polishing head | 8pc |
| Diameter of polishing disc | 125mm |
| Polishing head motor | 3kwX4个 |
| Processing width | 80-800mm |
| Processing thickness | 10-60mm |
| Processing speed | 1—5.0m/min |
| Total power | 17kw |
| Electric consumption | 14kw/H |
| Water consumption | 350L/min |
| Size of machine | 3.50m×2.00m×1.80m |
| weight | 2500kg |
Technical data reflects the legacy product record. Confirm voltage, options and final configuration with the approved quotation.
Bring the material. We’ll plan the process.
Send your material, maximum dimensions and production target. We will help you confirm the suitable machine configuration.
