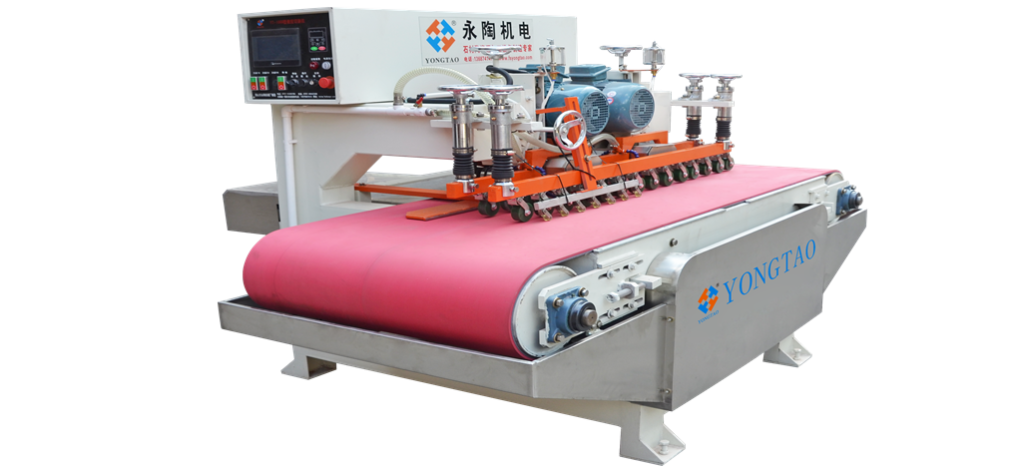

YTQZ-A/2-1200 Two Blade CNC Tile Cutting Machine
Buy Yongtao CNC Tile Cutting Machine, the maximum cutting is 1.2m, the CNC adjusts the size, and the cutting precision is high. Customers are all over the world
Product introduction
YTQZ-A/2-1200 Two Blade CNC Tile Cutting Machine is an new CNC tile cutting machine, which was researched and developed by our company. Ceramic cutter machine is an outstanding Ceramic Tile cutting machine in tile processing, which adopts two blades continuous cutting. The first blade cut a half, and the second blade cut off. It greatly improve the cutting peed and ensure the cutting effect at the same time.
CNC Tile Cutting Machine:
Features of YTQZ-A/2-1200 Two Blade CNC Tile Cutting Machine
(1) The cutting size can be numerical controlled, and the accuracy reaches 0.1mm.
(2) The two cutting discs integrate the pre-cutting and cutting-off. The cracks and unevenness can be reduced much.
(3) Low breakage rate, stable function, saving energy and reducing cost. High speed, and excellent performance.
(4) automatic monitoring of failures, and convenient repair.
YTQZ-A/2-1200 Two Blade CNC Ceramic Tile Cutter will certainly bring you high-class products and perfect economic benefit.
Parameter of YTQZ-A/2-1200 Two Blade CNC Tile Cutting Machine
Machine specifications
| Nos. Of cutting head | 2pc |
|---|---|
| Width of conveyor belt | 1020mm |
| Dia. Of blade | Φ110-150mm*20mm |
| Main motor power | 4kw |
| Conveyor motor | 1.1kw |
| Speed of conveyor | 1-5.0m/min |
| Cutting width | 20-1200mm |
| Max half-and-half cutting width | 1200x1200mm (two pcs of 600x1200) |
| Max. Cutting thickness | 20mm |
| Total power | 9.1kw |
| Size of machine | 2.4*2.0*1.8m |
| Weight | About 1200kg |
| Water consumption | 200L/min |
Technical data reflects the legacy product record. Confirm voltage, options and final configuration with the approved quotation.
